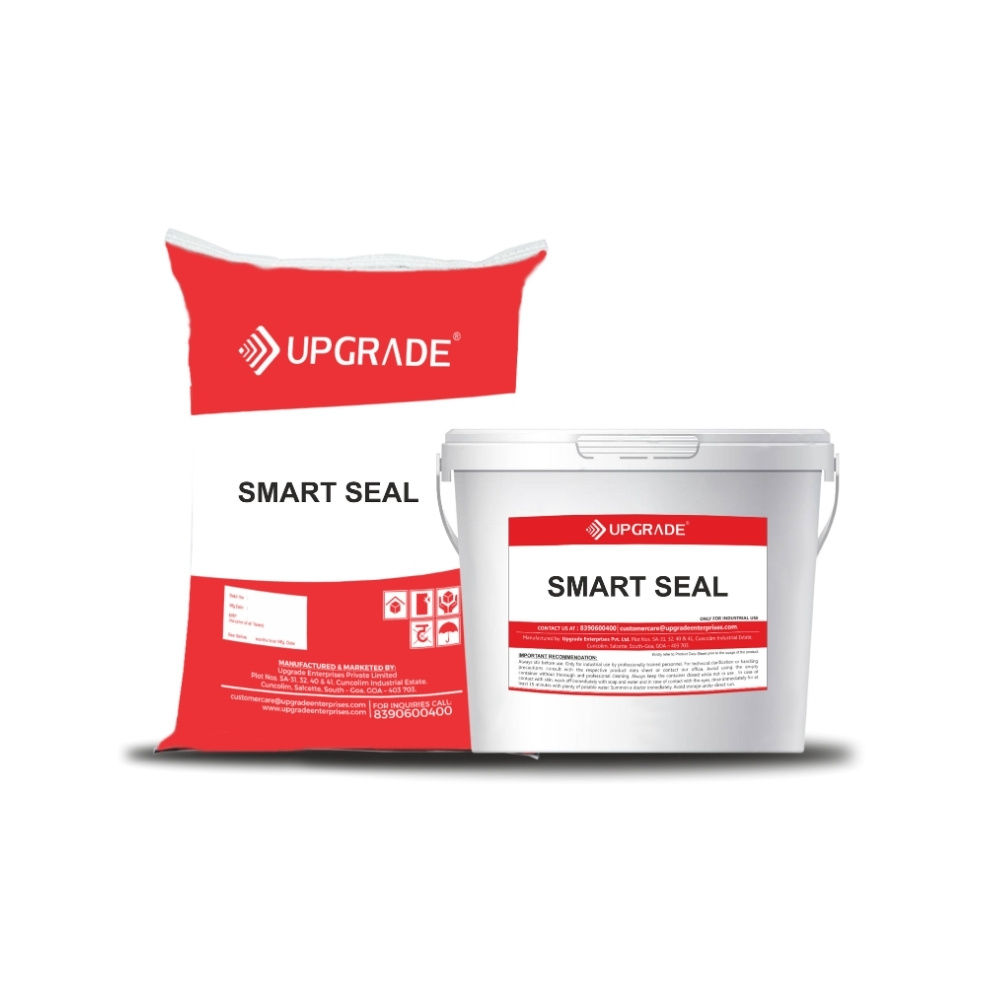

UPGRADE SMART SEAL

. Excellent crack-bridging and elastic properties.
. Provides strong resistance against water ingress.
. Prevents carbonation and arrests salt petre formation.
. Excellent adhesion to concrete, brickwork, and masonry surfaces.
. High abrasion resistance and long-lasting durability.

. Waterproofing of flat roofs in exposed and concealed systems.
. Basements and underground concrete structures.
. Water retaining structures, pits, basins, and sumps.
. Waterproofing of concrete, screed, and mortar surfaces.
. Protection of brick tiles, cement tiles, plaster, and porous stone substrates.

. Type: Two-pack acrylic cementitious waterproofing coating system.
. Component A: White acrylic co-polymer liquid.
. Component B: Specially graded cementitious grey powder.
. Mixing Ratio (A:B): 1 : 1.5 by weight.
. Appearance After Mixing: Dusty grey coloured slurry.
. Pot Life: 30–35 minutes.
. Mix Density: 1.6–1.8 g/cm³.
. Cure Time: 24 hours.
. Tensile Strength: 1.19 N/mm² after 28 days (with glass fibre).
. Elongation at Break: ~35% without glass fibre, ~20% with glass fibre.
. Tensile Adhesion Strength: ~0.67 N/mm².
. Base Coat Consumption: 1.0 kg/m².
. Top Coat Consumption: 1.2 kg/m².
. Glass Fibre Reinforcement: 1 m²/m².
. Layer Thickness: Approximately 1 mm with glass fibre mesh.
. Overcoating Time: 2–6 hours between coats.
. Shelf Life: 12 months under recommended storage conditions.

Step 1: Ensure the substrate is structurally sound, clean, and free from dust, grease, oil, laitance, loose particles, and contaminants.

Step 2: Prepare the surface using suitable mechanical methods such as water jetting, blast cleaning, or grinding. Pre-wet the surface to a saturated surface dry (SSD) condition.

Step 3: Mix Component A and Component B in a ratio of 1:1.5 by weight. Slowly add the powder to the liquid while mixing with a slow-speed mixer (500–600 rpm).

Step 4: Continue mixing for approximately 3 minutes until a smooth, lump-free slurry is obtained.

Step 5: Dampen the surface immediately before application.

Step 6: Apply the first coat using a stiff brush, broom, spray equipment, or notched trowel depending on the required consistency.

Step 7: While the first coat is still wet, place and embed the glass fibre mesh firmly into the coating.

Step 8: Allow the first coat to harden for 2–6 hours.

Step 9: Apply the second coat in a crosswise direction to the first coat to ensure complete coverage.

Step 10: While the top coat is still wet, sprinkle clean quartz sand if a protection plaster, screed, mortar, or adhesive layer will be applied later.

Step 11: Allow the system to cure for at least 24 hours before exposure to service conditions.

Manufactured By

Upgrade Enterprises Private Limited
Plot Nos. SA-31, 32, 40 & 41,
Cuncolim Industrial Estate,
Cuncolim, Salcete, South Goa,
Goa – 403703, India.
